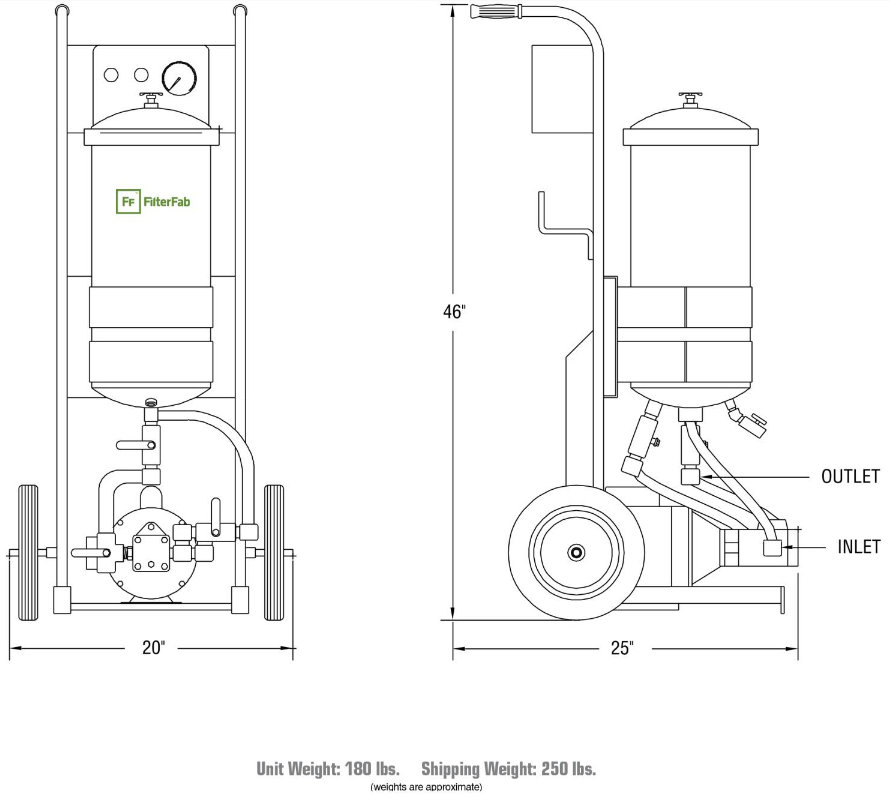

MFU-1105P Portable Filtration System

High Performance Filtration for Today's Industry

180 GPH


  • 1/2 HP TEFC Heavy Duty Motor with Thermal Overload Protection
  • 5 GPM Positive Displacement Gear Pump with Internal Relief Valve
  • One (1) Polyurethane Powder Baked 51-0001 Element Housings
  • Wired 110 Volt, 1 Phase with all electrical components mounted in a NEMA 4 enclosure
  • Motorstarter Switch with Automatic / Manual Override Circuit
  • Automatic high / low pressure shutdown system for unattended operation
  • 1-100 PSI glycerin filled gauge formonitoring system pressure
  • Plumbed with all brass fittings and 1/2" industrial hydraulic hose
  • 1/2" Inlet and outlet ball valves provided to isolate unit for element change
  • Two (2) 15 ft. 1/2" inlet and outlet hydraulic hoses with hose ends
  • Fifteen (15) feet of heavy duty 14/3 power cable
  • Suction-Wye Strainer to protect pump from large debris
  • Heavy duty 10" pneumatic tires
  • Filtration capacity of 3 GPM and fluid transfer capacity of 5 GPM


Hydrolic Oil • Compressor Oil • Quench Oil • EDM Oil • Lubricating Oil • Insulating Oil • Turbine Oil • Gear Oil • Water Glycol Fluids • Water Based Coolants
