MSC-403210-WO

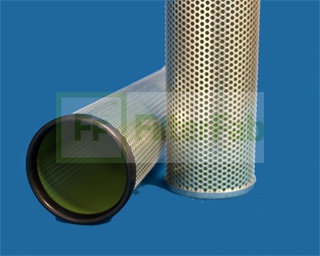

Description: CANISTER SEPARATOR ELEMENTS

Specifications:
  • Performance Data
    Micron Rating: 150.00
    Beta Rating N/A
    Collapse Pressure Rating 75 PSID
    Maximum Temperature 225 F
    Direction of Flow
    Recommended Changeout Differential Pressure 25
  • Dimensional Data
    (A) Outer Diameter, Top 4.50 (114.3mm)
    (B) Outer Diameter, Bottom 4.50 (114.3mm)
    (C) Inner Diameter 3.94 (100.08mm)
    (D) Inner Diameter, Bottom 0.50 (12.7mm)
    (E) Length 21.50 (546.1mm)
    (F) Thread NONE
  • Physical Data
    Handle NONE
    Seal Material NONE
    Type of Adhesive EPOXY
    Type of Endcap ALUMINUM/NYLON
    Center Tube NONE
    Type of Media 304 SS/TEFLON
    Filter Area SQ.IN.
    Plating NONE
    Outer Jacket 1
    Configuration SINGLE OPEN END/BH
  • Packaging Data
    Number Per Carton 1
    Carton Weight 3.00lb (1.36 kg)

$  118.37
