MS-430S62-SOE

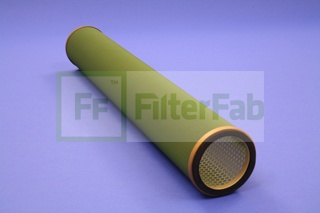

Description: SEPARATOR ELEMENTS TEFLON COATED

Specifications:
  • Performance Data
    Micron Rating: 150.00
    Beta Rating N/A
    Collapse Pressure Rating 75 PSID
    Maximum Temperature 225 F
    Direction of Flow
    Recommended Changeout Differential Pressure 20
  • Dimensional Data
    (A) Outer Diameter, Top 4.50 (114.3mm)
    (B) Outer Diameter, Bottom 4.50 (114.3mm)
    (C) Inner Diameter 3.50 (88.9mm)
    (D) Inner Diameter, Bottom 0.56 (14.22mm)
    (E) Length 30.00 (762mm)
    (F) Thread NONE
  • Physical Data
    Handle NONE
    Seal Material BUNA-N
    Type of Adhesive EPOXY
    Type of Endcap ALUMINUM
    Center Tube ALUMINUM
    Type of Media 304 SS/TEFLON
    Filter Area SQ.IN.
    Plating ANODIZED
    Outer Jacket 0
    Configuration SINGLE OPEN END/BH
  • Packaging Data
    Number Per Carton 6
    Carton Weight 0.00lb (0 kg)

$  113.27
