FFA-810317

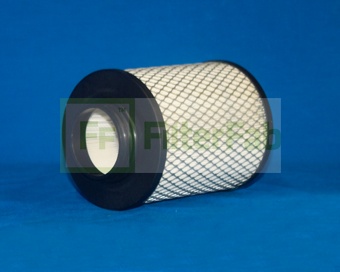

Description: INTAKE AIR FILTER ELEMENTS

Specifications:
  • Performance Data
    Micron Rating: 5.00
    Beta Rating N/A
    Collapse Pressure Rating N/A
    Maximum Temperature 225 F
    Direction of Flow
    Recommended Changeout Differential Pressure 20
  • Dimensional Data
    (A) Outer Diameter, Top 5.00 (127mm)
    (B) Outer Diameter, Bottom 5.00 (127mm)
    (C) Inner Diameter 0.00 (0mm)
    (D) Inner Diameter, Bottom 0.00 (0mm)
    (E) Length 6.75 (171.45mm)
    (F) Thread MASON JAR  (0mm)
  • Physical Data
    Handle NONE
    Seal Material BUNA-N
    Type of Adhesive EPOXY
    Type of Endcap GLASS FILLED NYLON
    Center Tube STEEL
    Type of Media PAPER
    Filter Area 882 SQ.IN.
    Plating NONE
    Outer Jacket 1
    Configuration SINGLE OPEN END
  • Packaging Data
    Number Per Carton 12
    Carton Weight 45.00lb (20.41 kg)

$  26.93
